Automatic Balers with Cyclone for Corrugated Packaging Plants

Description

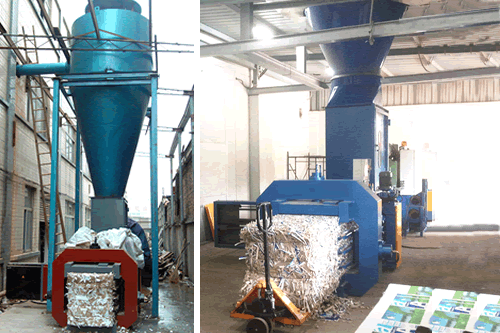

The Full Automatic Baler with Cyclone is a kind of baler that is widely used in carton packaging plant. It is specially designed for recycling loose materials like waste paper, OCC, cartons, cardboards and their leftover materials or scrap materials etc. For years, it has been popular among many industries and plants, including corrugated packaging industry, printing plants, paper mills and recycling centers etc. There are two models for option. The capacity ranges from 1 ton to 3 per hour. Besides, the machine adopts full automatic system, which greatly saves your labor cost. Powerful cyclone is optional for sucking trimmings rapidly.

Parameters

Model	MF200A5050	MF400A7280
Main Cylinder Size	Ø125	Ø160
Main Motor Power	7.5 kw	15 kw
Cooling System	air cooler / water cooler	air cooler / water cooler
Cycle Time (unload)	19 s	20 s
Oil Reservoir	280 L	540 L
Number of Belting	3 line	4 line
Wire Size	Ø2.4-2.7	Ø2.4-2.7
Feed Opening Size (L×W)	625×480 mm	1200×690 mm
Chamber Size (L×W×H)	900×500×500 mm	1600×720×800 mm
Bale Size (L×W×H, L can be adjustable)	L×500×500 mm	L×720×800 mm
Bale Density (OCC)	350-450 kg/m3	350-450 kg/m3
Throughput (30-60kgs/m3)	1-1.5 ton/h	1.5-3 ton/h
Machine Weight	3 ton	7 ton
Machine Overall Dimension(mm)	3600×2500×1650	6000×3200×2500
Feeding Device	Cyclone / conveyor	Cyclone / conveyor
