Small-sized Semi-auto Horizontal Baling Machines

Description

The small-sized semi-auto horizontal baling machine is a kind of baler that is widely used for recycling and compressing the loose materials. The materials include plastic film, plastic bottles, plastic waste, waste paper, cardboards, cartons and their trimmings and leftover materials etc. The close-top structure makes the bales tighter. Its doors open automatically and lock hydraulically. Besides, the process of compressing and ejecting bales is all run automatically.

Features

1. The unique double-cutting design of cutters improves the cutting efficiency and lengthens the lifespan of the cutter.
2. The special anti-slide design of the machine makes the bales look better.
3. The main cylinder adopts trunnion-mounted frame and ball-end joint design. This removes the torque on the rod and thus lengthens the lifespan of the seals.
4. Its press heads are specially processed by planomiller, which ensures the precise running of the ram.
5. This machine adopts original imported hydraulic system, making the machine more safe and durable.
6. Only flat ground is required by the installation of the machine.

Parameters

Model	MS400A7280	MS600A10080
Main Cylinder Size	Ø140	Ø160
Main Motor Power	11 kw	15 kw
Cooling System	N/A	N/A
Cycle Time (unload)	19 s	23 s
Oil Reservoir	240 L	380 L
Number of Belting	4 line	4 line
Wire Size	Ø2.4-2.7	Ø2.7-3.0
Feed Opening Size (L×W)	1000×700 mm	1200×980 mm
Chamber Size (L×W×H)	2200×700×780 mm	2400×980×780 mm
Bale Size (L×W×H)	1000×720×800 mm	1000×1000×800 mm
Bale Density (OCC)	400-500 kg/m3	450-550 kg/m3
Throughput (approx./ depend on the raw material density and the skill of the operators)	0.5-1 ton/h	1-1.5 tons/h
Machine Weight	4 ton	5.2 ton
Machine Overall Dimension	5500×1100×2000 mm	6100×1400×2000 mm

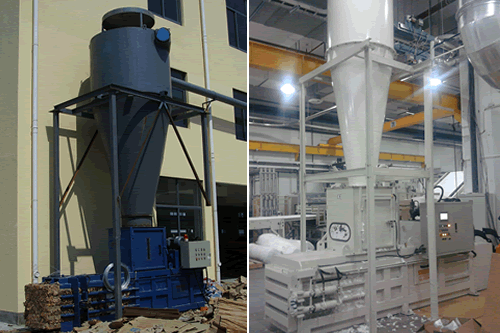

Feeding Device	cyclone / conveyor	cyclone / conveyor
