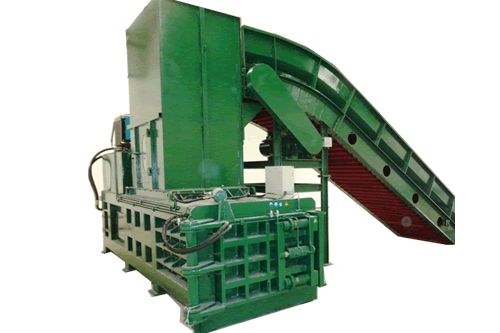

Heavy Duty Semi Automatic Balers for Pressing PET Bottles

Description

The Heavy Duty Semi Automatic Balers are a kind of balers that specializes in compressing loose materials like waste PET bottles, plastic film, plastic pallets, waste paper, cardboards, cartons, OCC, palm fiber, coconut fibre, alfalfa and so on. The balers are equipped with high-duty baling door, automatic door and hydraulic closing door. All those make it easy to operate the machine, and the bales are higher in density. Hence, these types of balers are Particular great for baling and compressing hollow materials like PET bottles.

Features

1. The unique double-cutting design of cutters improves the cutting efficiency and lengthens the lifespan of the cutter.
2. The special anti-slide design of the machine makes the bales look better.
3. The main cylinder adopts trunnion-mounted frame and ball-end joint design. This removes the torque on the rod and thus lengthens the lifespan of the seals.
4. Its press heads are specially processed by planomiller, which ensures the precise running of the ram.
5. This machine adopts original imported hydraulic system, making the machine more safe and durable.
6. Only flat ground is required by the installation of the machine.

Specifications

Model	MS1000A11085C
Main Cylinder Size	Ø220
Main Motor Power	30 kw
Cooling System	air cooler / water cooler
Cycle Time (unload)	36 s
Oil Reservoir	1460 L
Number of Belting	4 line
Wire Size	Ø3.0-3.2
Feed Opening Size (L×W)	1400×1050 mm
Chamber Size (L×W×H)	3000×1050×830 mm
Bale Size (L×W×H)	1300×1100×850 mm
Bale Weight(PET)	410 kg
Throughput (approx./ depend on the raw material density and the skill of the operators)	1-2 ton/h
Machine Weight	12 ton
Machine Overall Dimension	7300×1600×2300 mm
Feeding Device	Conveyor
Feeding Width	1400 mm
Speed	12 m/min
Power	5.5 kw
Weight	4.5 ton
Overall Dimension	9000×1900×4200 mm
