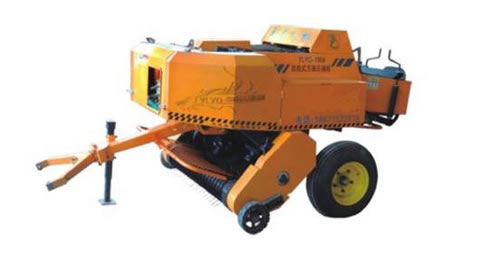

Pick-Up Hay Baler

Application

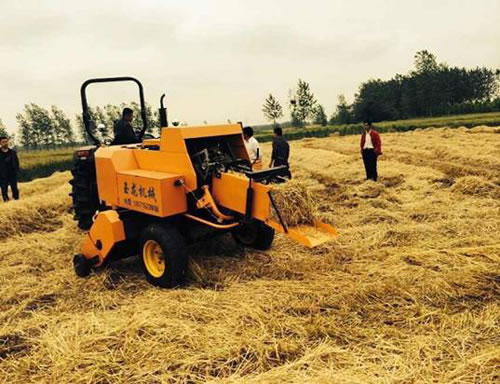

The Pick-Up Hay Baler is a type of baler that is widely used to press hay into balers, including straw, corn stalks, peanut seedling, beans, leaves, seeds. It can also deal with biomass like cotton straw, shrubs.

Advantages

1. The hay is easy to sell after bundling, which increases farmers' income.
2. The hay can easily process livestock after bundling, which makes the most of resources.
3. The baler prevents farmers from burning straw without polluting the environment. What is more, it reduces the possibility of fire.

Parameters

Model	MAC-1950	MAC-1550
Baling Chamber
Chamber Cross Section Size	360×460 mm	360×460 mm
Bale Length	310-1300 mm	310-1300 mm
Bale Density	120-180 kg/m3	120-180 kg/m3
Pick-up Device
Pick-up Width	1950 mm	1550 mm
Spring Tooth	39	36
Spring Rods	3 pc	3 pc
Plunger Speed	138 r/min	138 r/min
Transmission	Chain Drive 08B-1-100	Chain Drive 08B-1-100
Contour Wheel	2 pc	2 pc
Overload Protection	Belt Creep	Belt Creep
Screw Size	DIA320	DIA320
Rotating Speed	313 r/min	313 r/min
Overload Protection	Belt Creep	Belt Creep
Structure	Crank Rocker Arm	Crank Rocker Arm
Feeding Forks	4 pc	4 pc
Transmission	Chain drive 12A-1-116	Chain drive 12A-1-116
Overload Protection	Safety Bolt	Safety Bolt
Compressing Device
Working Cycle Time	100 t/min	100 t/min
Stroke	550 mm	550 mm
Strapping Info
Knotter QTY	2 pc	2 pc
Strapping Rolls	6 pc	6 pc
Machine Overall Information
Machine Overall Dimension	4600×2300×1750 mm	4600×1900×1750 mm
Machine Weight	1750 kg	1550 kg
Tractor Size Required
Power	>50 hp	>35 hp
PTO Speed	540 rpm	540 rpm
Tire Size	10-15 9.0x15.3	10-15 9.0x15.3
Tire Inflation Pressure	300 kPa	300 kPa
