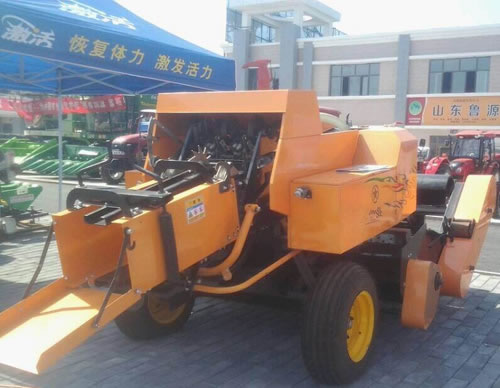

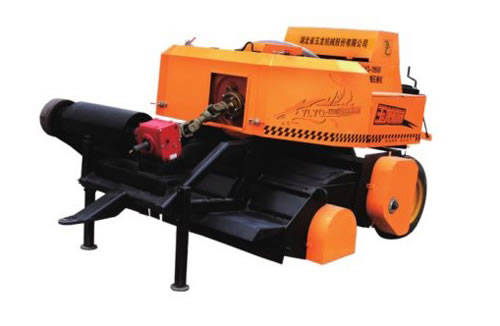

Mini Square Hay Baler in Agriculture

Description

The Mini Square Hay Baler in agriculture is one new kind of equipment that is widely used to gather and bundle up dry and wet pasture, rice, wheat, corn stalk and straw. Its bale is in small size and compact structure, making it easy to transport and store. Facts have proved that this mini square hay baler has a great impact in recovering straw and making the most of the straw without polluting the environment. Hence, it is very popular and is a good helper in farm.

Application

They are widely used to collect and bundle hay, including dry and green grass, straw, wheat stalk, corn stalk reed, Cane caudate lobe. It can also be applied with harvester to achieve the best effect.

Advantages

1. Long Lifespan
Our agricultural square balers are equipped with Germany imported bearing. This greatly improves the lifespan of the machine.
2. High Working Efficiency
Our balers are equipped with Germany imported knotting mechanism, which greatly enhances the working efficiency and decrease the bale off probability.
3. Labor Cost Saving
The balers have been patented in crushing grass. Based on the machine’s power, we designed automatic grass cleaning device. This greatly saves labor cost.

Types

Crusher Type Square Balers: MAC-1950C
Pick-up Square Hay Balers: MAC-1950,MAC-1550

Parameters

Model	MAC-1950	MAC-1550
Baling Chamber
Chamber Cross Section Size	360×460 mm	360×460 mm
Bale Length	310-1300 mm	310-1300 mm
Bale Density	120-180 kg/m3	120-180 kg/m3
Pick-up Device
Pick-up Width	1950 mm	1550 mm
Spring Tooth	39	36
Spring Rods	3 pc	3 pc
Plunger Speed	138 r/min	138 r/min
Transmission	Chain Drive 08B-1-100	Chain Drive 08B-1-100
Contour Wheel	2 pc	2 pc
Overload Protection	Belt Creep	Belt Creep
Feeding Screw
Screw Size	DIA320	DIA320
Rotating Speed	313 r/min	313 r/min
Overload Protection	Belt Creep	Belt Creep
Feeder
Structure	Crank Rocker Arm	Crank Rocker Arm
Feeding Forks	4 pc	4 pc
Transmission	Chain drive 12A-1-116	Chain drive 12A-1-116
Overload Protection	Safety Bolt	Safety Bolt
Compressing Device
Working Cycle Time	100 t/min	100 t/min
Stroke	550 mm	550 mm
Strapping Information
Knotter QTY	2 pc	2 pc
Strapping Rolls	6 pc	6 pc
Machine Overall Information
Machine Overall Dimension	4600×2300×1750 mm	4600×1900×1750 mm
Machine Weight	1750 kg	1550 kg
Tractor Size Required
Power	>50 hp	>35 hp
PTO Speed	540 rpm	540 rpm
Tire Size	10-15 9.0x15.3	10-15 9.0x15.3
Tire Inflation Pressure	300 kPa	300 kPa
